DESIGN 11 PLAN VIEW

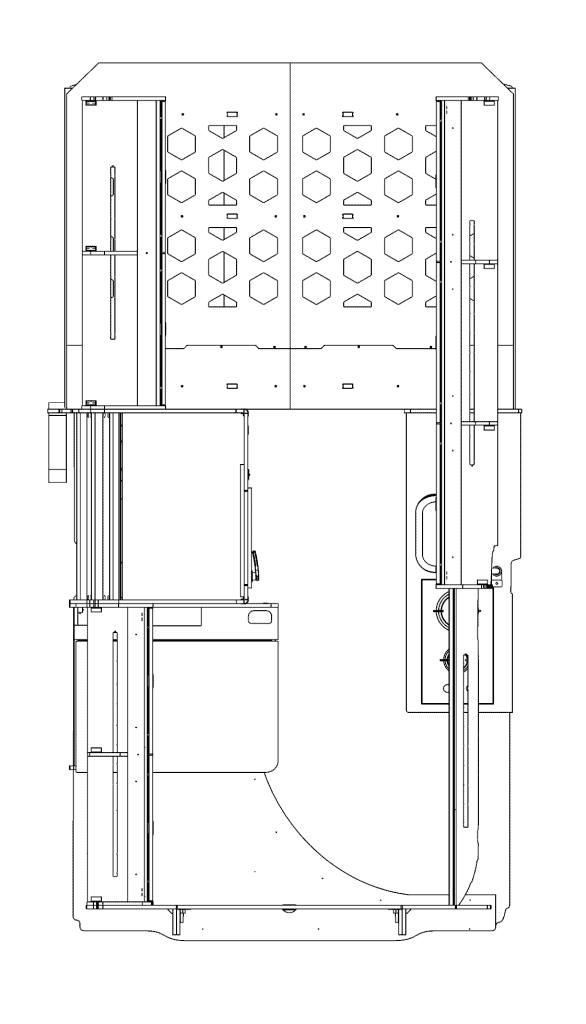

Plan view to help you with your conversion. Plan shows an EVO V11.3 kitchen pod. The double seat can be an existing front double from a van or our metal frame and seat box. The shower unit shown is our Shower C which is 810mm wide. The seat plinth can be omitted if you would prefer. This plan uses our floor. Exact dimensions may change slightly depending on options chosen and design updates. Please allow or – 5mm.   DESIGN 11 LAYOUT FOR THE CITROEN RELAY MK3 L3H2,  THERE ARE A NUMBER OF OPTIONS ON SOME OF THE PRODUCTS. HIGH LEVEL LOCKERS   Locker C1 (Passenger Side Over Bed Kitchen) Locker C2 (Driver Side Rear) Locker C3 (Driver Side Front) Cable Cover Over Cab Locker KITCHEN POD EVO V11.3 – Large Vans Side Door Kitchen Pod REAR BED UNIT & PLATFORM Rear Bed Platform SHOWER Shower Toilet Cubicle C TABLE iLSE Rotating Table Leg Twin Worktops Tops Mito Table Rail SEAT AREA Double Seat Frame Forward Facing FLOOR PLINTH Floor Plinth for Citroen Relay MK3 L3H2 coming soon PANELLING ROOF & SIDES Internal Panels FLOOR Light Weight Insulated Floor OPTIONAL ITEMS & APPLIANCES Thetford Topline 922 Hob Twin Burner 12V Ignition Indel B Cruise CR86 Fridge Large Sink Small Sink TRUMA Combi 4DE – Diesel & Electrical INET X Control Panel Second Gen
