DESIGN 2 PLAN VIEW

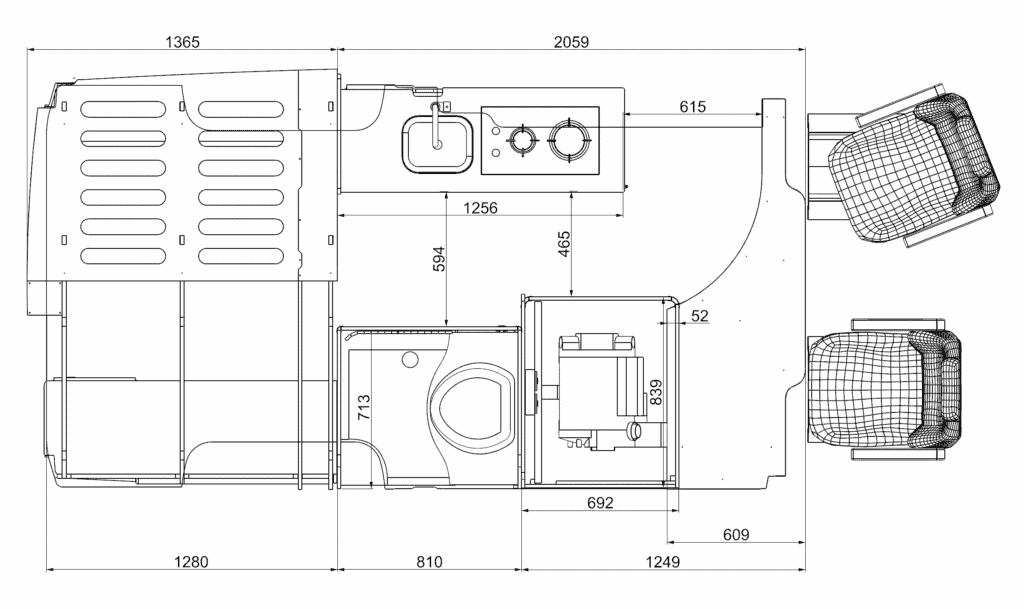

Plan view to help you with your conversion. Plan shows a EVO V8 kitchen pod this can be changed for another if you wish.The double seat can be an existing front double from a van or our metal frame and seat box. The shower unit shown is our Shower B which is 810mm this could be changed for the Micro shower 650 or 680 which gives you a larger seating area. The seat plinth can be omitted if your van is a 4×4 model . This plan uses our floor. Exact dimensions may change slightly depending on options chosen and design updates. Allow or – 5mm   DESIGN 2 LAYOUT FOR THE VW CRAFTER >2017,  THERE ARE A NUMBER OF OPTIONS ON SOME OF THE PRODUCTS. SPACE PODS https://www.evomotiondesign.co.uk/product/space-pod-vw-crafter-2017-onwards/ HIGH LEVEL LOCKERS   https://www.evomotiondesign.co.uk/product/over-cab-locker-crafter-man-tge-2017-onwards/ https://www.evomotiondesign.co.uk/product/locker-i-crafter-man-tge/ https://www.evomotiondesign.co.uk/product/locker-j-crafter-man-tge/ https://www.evomotiondesign.co.uk/product/locker-j-crafter-man-tge/ https://www.evomotiondesign.co.uk/product/locker-k-crafter-man-tge-mwb-van/ KITCHEN POD  ( 3 options ) https://www.evomotiondesign.co.uk/product/evo-v7-large-vans-side-door-kitchen-pod-4×4-motion/ https://www.evomotiondesign.co.uk/product/evo-v8-large-vans-side-door-kitchen-pod/ https://www.evomotiondesign.co.uk/product/evo-v8-oven-side-door-kitchen-pod/ REAR BED UNIT & PLATFORM ( 2 options ) https://www.evomotiondesign.co.uk/product/rear-bed-platform-crafter-2017-onwards-mwb-black-hex/ https://www.evomotiondesign.co.uk/product/bed-dividing-removable-steps/ https://www.evomotiondesign.co.uk/product/lifting-bed-with-storage-crafter-2017-onwards-4x4v-mwb-van/ https://www.evomotiondesign.co.uk/product/under-platform-bed-storage-crafter-2017-onwards-mwb-van/ SHOWER https://www.evomotiondesign.co.uk/product/shower-b-crafter-man-tge/ https://www.evomotiondesign.co.uk/product/tambour-door-for-shower-toilet-cubicle-2000-x-600-mm/ https://www.evomotiondesign.co.uk/product/shower-b-tray-wheel-arch-cover/ https://www.evomotiondesign.co.uk/product/bamboo-shower-board/ TABLE https://www.evomotiondesign.co.uk/product/rotating-table-leg-twin-worktops-tops-mito-table-rail/ SEAT AREA ( 2 options ) Using existing crafter >2017 front double https://www.evomotiondesign.co.uk/product/seat-box-cover-crafter-2017-front-double/ Using seat frame https://www.evomotiondesign.co.uk/product/double-seat-frame-sprinter-crafter-ducato-boxer/ https://www.evomotiondesign.co.uk/product/seat-frame-box/ Floor Plinth  ( not required in 4×4 or RWD Crafter >2017 ) https://www.evomotiondesign.co.uk/product/plinth-lwb-crafter/ CABLE COVER https://www.evomotiondesign.co.uk/product/cable-cover-control-panel-crafter-2017-onwards-mwb/ PANELLING ROOF & SIDES https://www.evomotiondesign.co.uk/product/crafter-new-shape-mwb-roof-panels/ https://www.evomotiondesign.co.uk/product/vw-crafter-2017-onwards-mwb-internal-panels/ https://www.evomotiondesign.co.uk/product/light-weight-back-doors-panels-new-vw-crafter-2017-onwards/ FLOOR ( 2 options ) https://www.evomotiondesign.co.uk/product/light-weight-insulated-floor-18mm-new-vw-crafter-2017-onwards-medium-wheel-base/ https://www.evomotiondesign.co.uk/product/light-weight-insulated-floor-18mm-new-vw-crafter-2017-onwards-medium-wheel-base-2/ OPTIONAL ITEMS & APPLIANCES https://www.evomotiondesign.co.uk/product/thetford-spinflo-topline-922-hob-twin-burner-12v-ignition/ https://www.evomotiondesign.co.uk/product/thetford-t2090-compressor-fridge/ https://www.evomotiondesign.co.uk/product/sink-large-296-x-326-x-150mm-deep/ https://www.evomotiondesign.co.uk/product/sink-small-236-x-296-x-150mm-deep/ https://www.evomotiondesign.co.uk/product/truma-combi-d4e-diesel-electrical-inet-x-control-panel/
