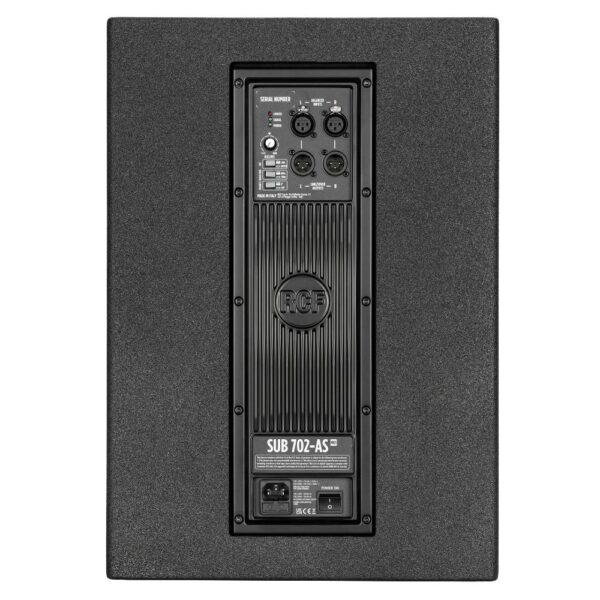

1400 Watt Class-D Amplifier 12" Woofer, bass reflex housing Stereo Crossover Switchable Crossover Frequencies Polarity-reverse switch Electronic equalization, soft limiter and protection Stereo XLR input, Stereo XLR signal output Bass Motion Control excursion management The SUB 702-AS mk3 is a portable 12″ high-power active subwoofer for live sound applications. It features a state-of-the-art transducer with a high-power ceramic magnetic circuit and a powerful Class-D amplifier that delivers sound pressure levels up to 129 dB with exceptional headroom. Designed as the ideal complement for 8″ or 10″ loudspeakers, it provides outstanding performance in any application. Rear panel controls include volume, EQ, polarity, and crossover frequency selection. The rugged all-wood cabinet with scratch-resistant polyurea coating makes it durable, easy to carry and install securely. With its versatility, sound quality, and high power output, the SUB 702-AS MK3 is perfect for small to mid-sized venues and portable applications. TECHNICAL SPECIFICATIONS Acoustical specifications Frequency Response: 40 Hz ÷ 120 Hz Max SPL @ 1m: 129dB Transducers Woofer: 12”, 2.5” vc Input/Output section Input signal: bal/unbal Input connectors: XLR Output connectors: XLR Input sensitivity: -2 dBu/ 4 dBu Processor section Hi-Pass Frequencies: 110 Hz Low-Pass Frequencies: 80 Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Volume, EQ, Phase, Xover Power section Total Power: 1400 W Peak, 700 W RMS Low frequencies: 1400 W Peak, 700 W RMS Cooling: Convection Connections: VDE Standard compliance Safety agency: CE compliant Physical specifications Cabinet/Case Material: Baltic birch plywood Handles: One each side Pole mount/Cap: Yes Grille: Steel with clothing Color: Black Size Height: 523 mm / 20.59 inches Width: 360 mm / 14.17 inches Depth: 515 mm / 20.28 inches Weight: 21 kg / 46.3 lbs Shipping information Package Height: 565 mm / 22.24 inches Package Width: 575 mm / 22.64 inches Package Depth: 420 mm / 16.54 inches Package Weight: 25 kg / 55.12 lbs
