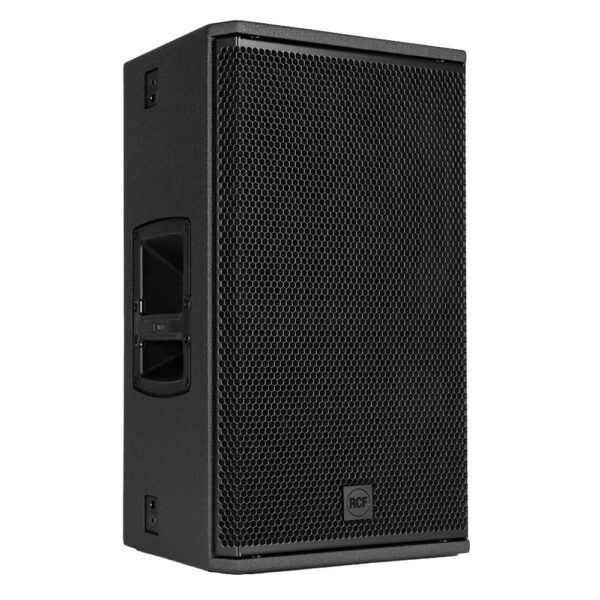

Up to 132 dB Sound Pressure Level 2100W Class-D Bi-Amplification 45-20000 Hz linear frequency response 3″ Titanium/Neodymium Compression Driver 12 ″ Woofer FiRPHASE zero degrees phase technology Bass Motion Control woofer excursion management Six M10 and four Quick Lock rigging points NX 932-A is masterfully engineered from the ground up to deliver stellar audio performance for sound providers, small bands and DJs. The combination of a 3″ titanium/neodymium compression driver, 12″ woofer – two-channel 2,100W amplifier, and the constant directivity True Resistive Waveguide produces coherent 100° x 70° coverage for the listening area with up to 132 dB SPL, distortion - free sound. Used as a stand-alone speaker for a FOH system, satellite (with subwoofer), stage monitor, or flown speaker, the NX 932-A blends high performance and reliability in a compact package. Merging RCF proprietary FiRPHASE and Bass Motion Control DSP processing, perfectly tuned for each model, the audience will experience absolute sound clarity and deep, powerful bass response. The tour-ready, rugged all-wood cabinet is easy to carry and secure to install on a pole-, flown-, wall-, or truss-mounted using the dedicated rigging points available. TECHNICAL SPECIFICATIONS Acoustical specifications Frequency Response: 45 Hz ÷ 20000 Hz Max SPL @ 1m: 132dB Horizontal coverage angle: 100° Vertical coverage angle: 70° Transducers Compression Driver: 1 x 1.4” neo, 3.0” vc Woofer: 12”, 2.5” vc Input/Output section Input signal: bal/unbal Input connectors: Combo XLR/Jack Output connectors: XLR Input sensitivity: -2 dBu/ 4 dBu Processor section Crossover Frequencies: 700Hz Protections: Thermal, RMS Limiter: Soft Limiter Controls: Linear, Boost, Stage, Volume Power section Total Power: 2100 W Peak High frequencies: 700 W Peak Low frequencies: 1400 W Peak Cooling: Convection Connections: Powercon TRUE1 TOP IN/OUT Standard compliance Safety agency: CE compliant Physical specifications Cabinet/Case Material: Plywood Hardware: 2 x M10 Top, 1 x M10 each side, 1 x M10 bottom, 1 x M10 rear 2 each side quick lock pin seat Handles: 1 x Tie Pole mount/Cap: Yes Grille: Steel Colour: Black, White Size Height: 620 mm / 24.41 inches Width: 362 mm / 14.25 inches Depth: 405 mm / 15.94 inches Weight: 22.9 kg / 50.49 lbs Shipping information Package Height: 666 mm / 26.22 inches Package Width: 461 mm / 18.15 inches Package Depth: 416 mm / 16.38 inches Package Weight: 26 kg / 57.32 lbs
